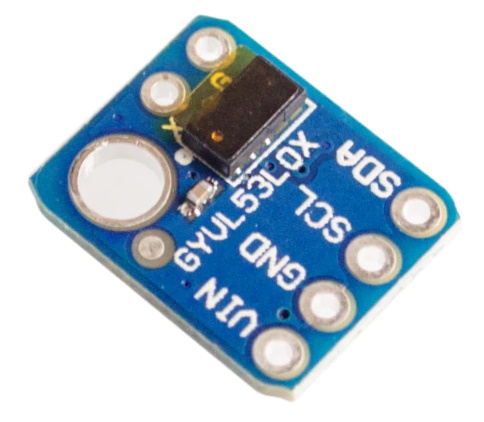

VL53L0X laser ranging module~
The VL53L0X is a Time-of-Flight (ToF) laser-ranging module.
Configuration~
Wiring~
| VL53L0x | ESP8266 |
|---|---|
| GND | GND |
| VCC | 3.3V |
| SDA | GPIOx |
| SCL | GPIOy |
Tasmota Settings~
In the Configuration -> Configure Module page assign:
- GPIOx to
I2C SDA (6) - GPIOy to
I2C SCL (5)
After a reboot the driver will detect VL53L0x automatically and display distance in mm.
Sensor sends a tele/%topic%/SENSOR JSON reponse:
{"Time":"2019-12-20T11:29:22","VL53L0X":{"Distance":263}}

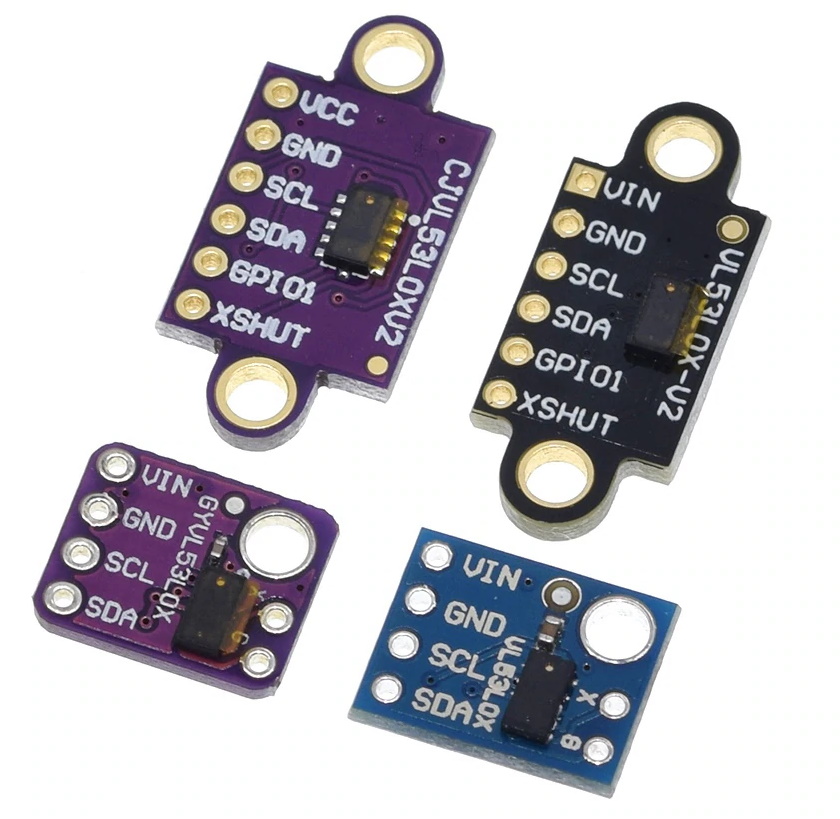

Breakout Boards~
