Wi-Fi Module Pinouts~

ESP82xx Based~

ESP8266 and ESP8285~

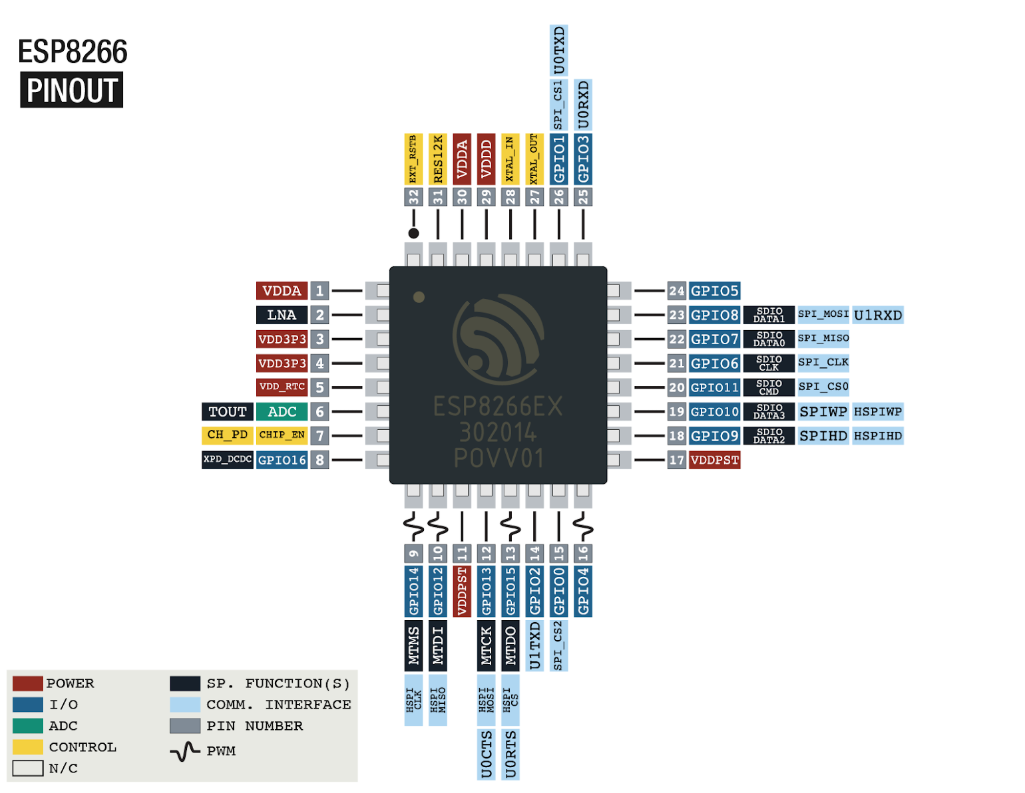

ESP8266 pinout

ESP-12S~

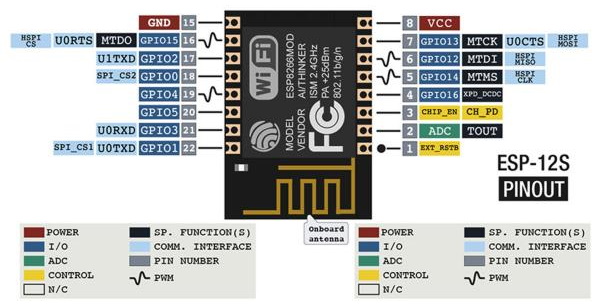

ESP-12S pinout

ESP-WROOM-02~

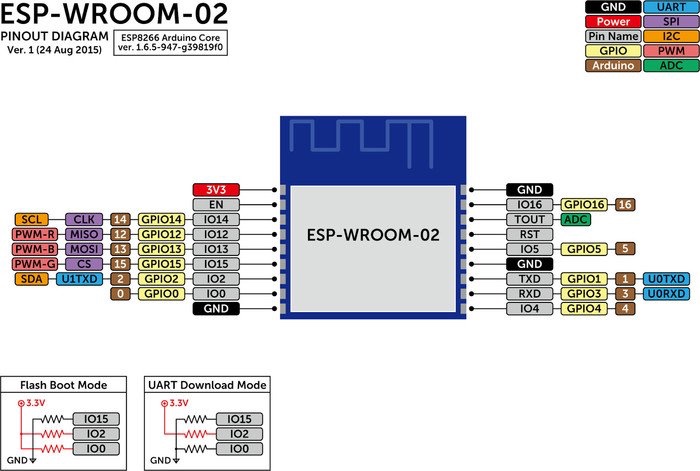

ESP-WROOM-02 Pinout

LM1~

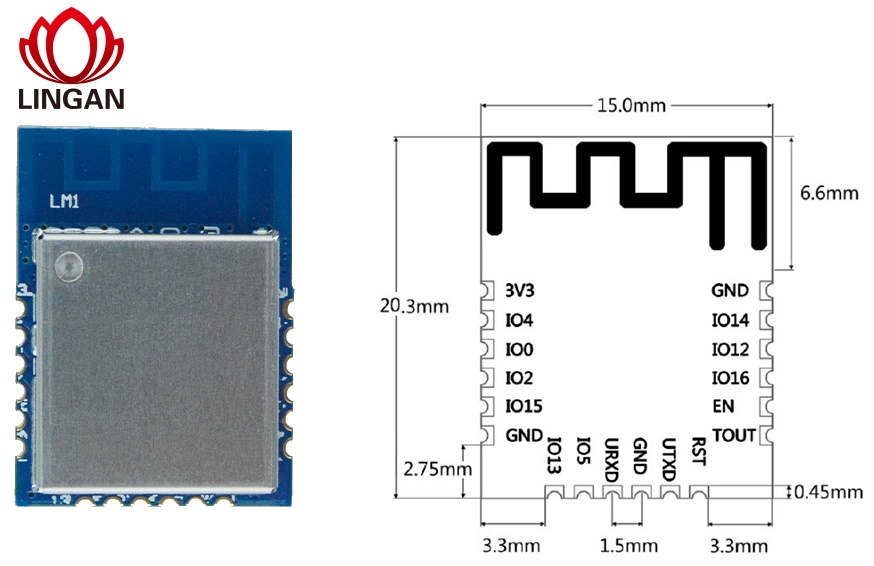

LM1 Pinout

TYWE1S~

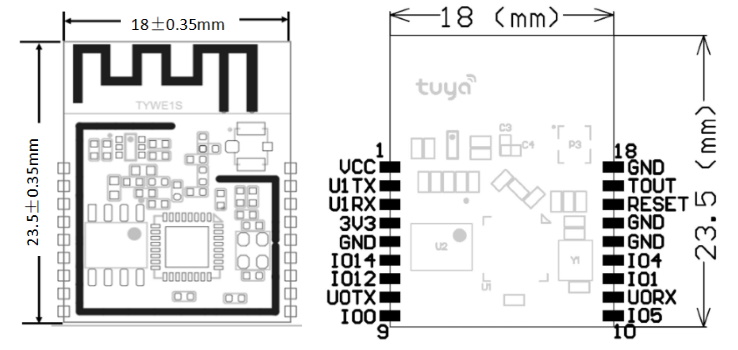

TYWE1S Pinout

TYWE2S~

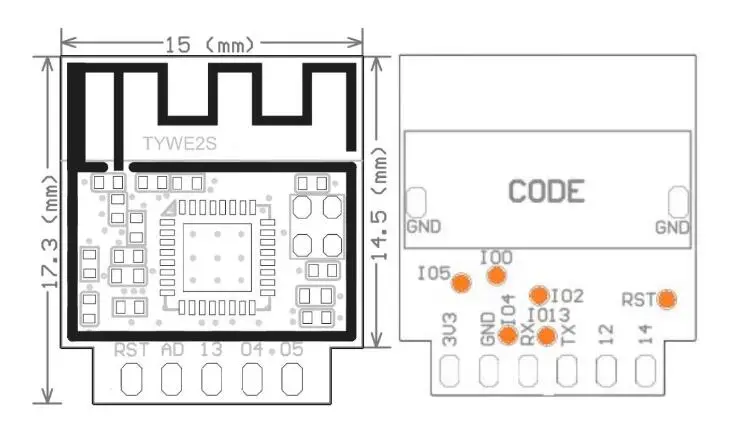

TYWE2S Pinout

TYWE2L~

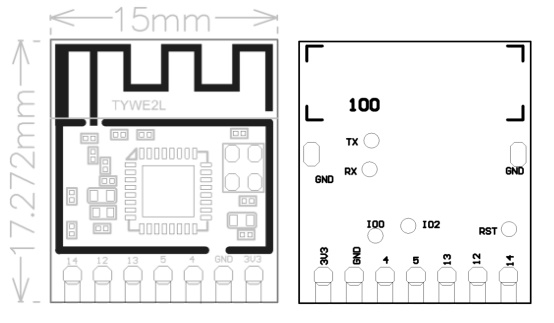

TYWE2L Pinout

TYWE3S~

TYWE3S Pinout

TYWE3L~

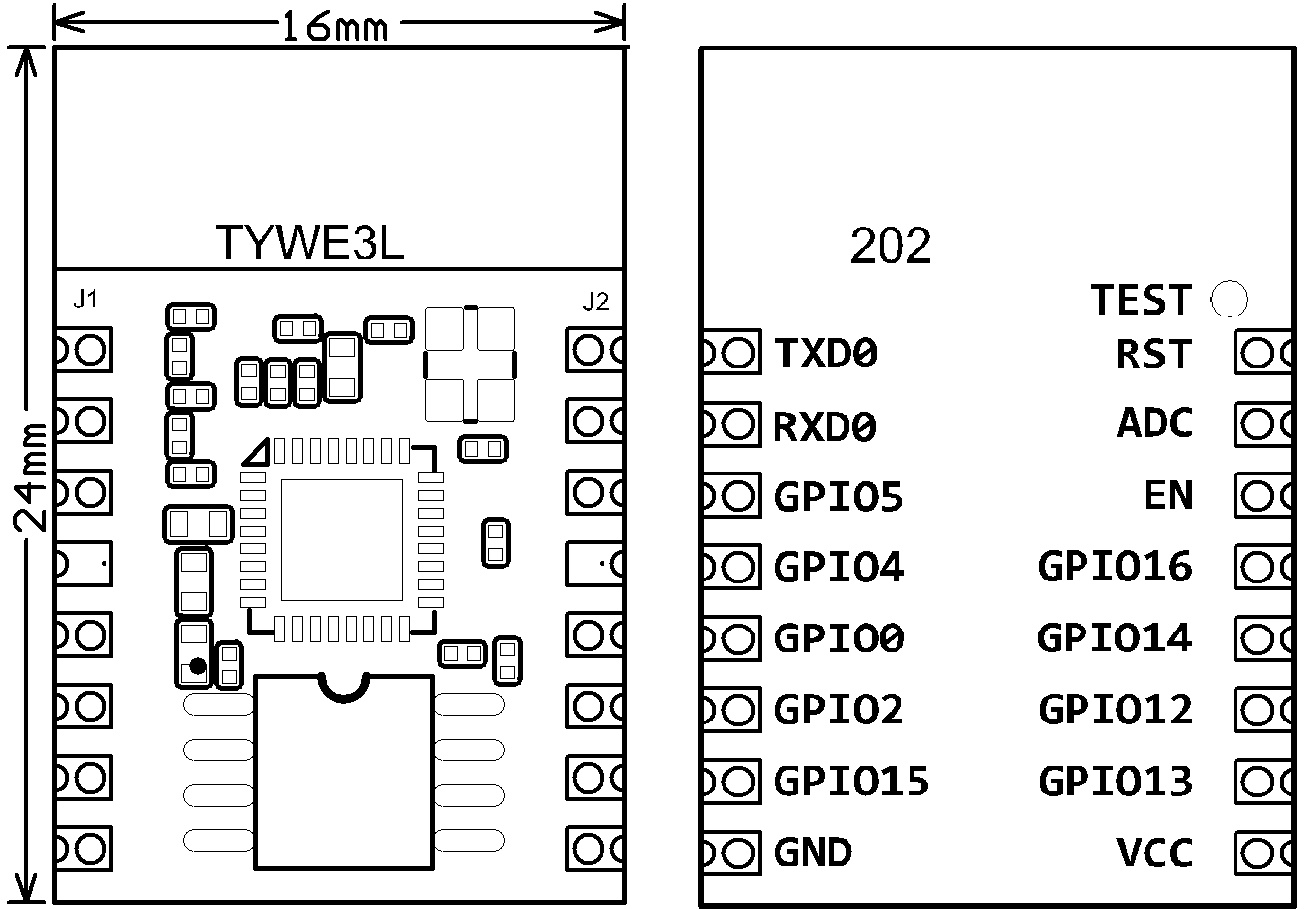

TYWE3L Pinout

TYLC4~

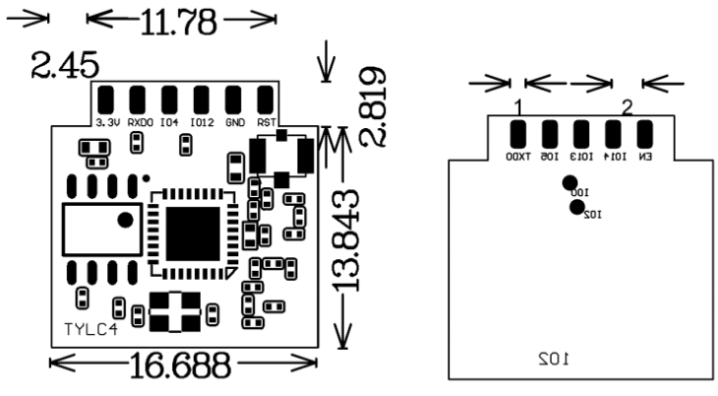

TYLC4TYLC4 Pinout

TYLC5~

TYLC5TYLC5 Pinout

TYWE5P~

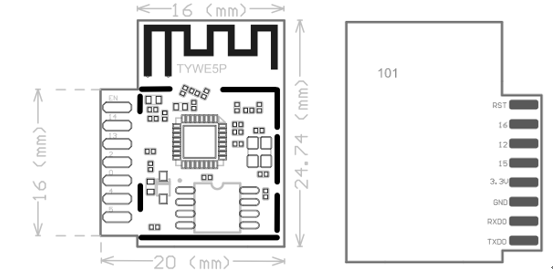

TYWE5PTYWE5P Pinout

PSF-B85/PSF-B01/PSF-B04~

PSF-B85 Pinout

ESP8266-S3~

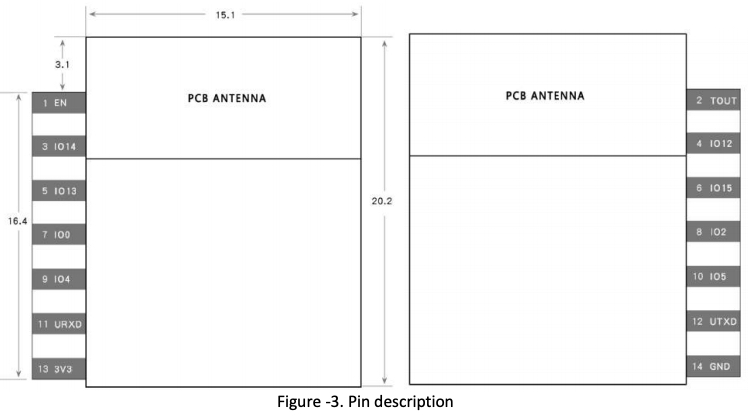

ESP8266-S3 Pinout

ESP32 Based~

ESP32-CAM~

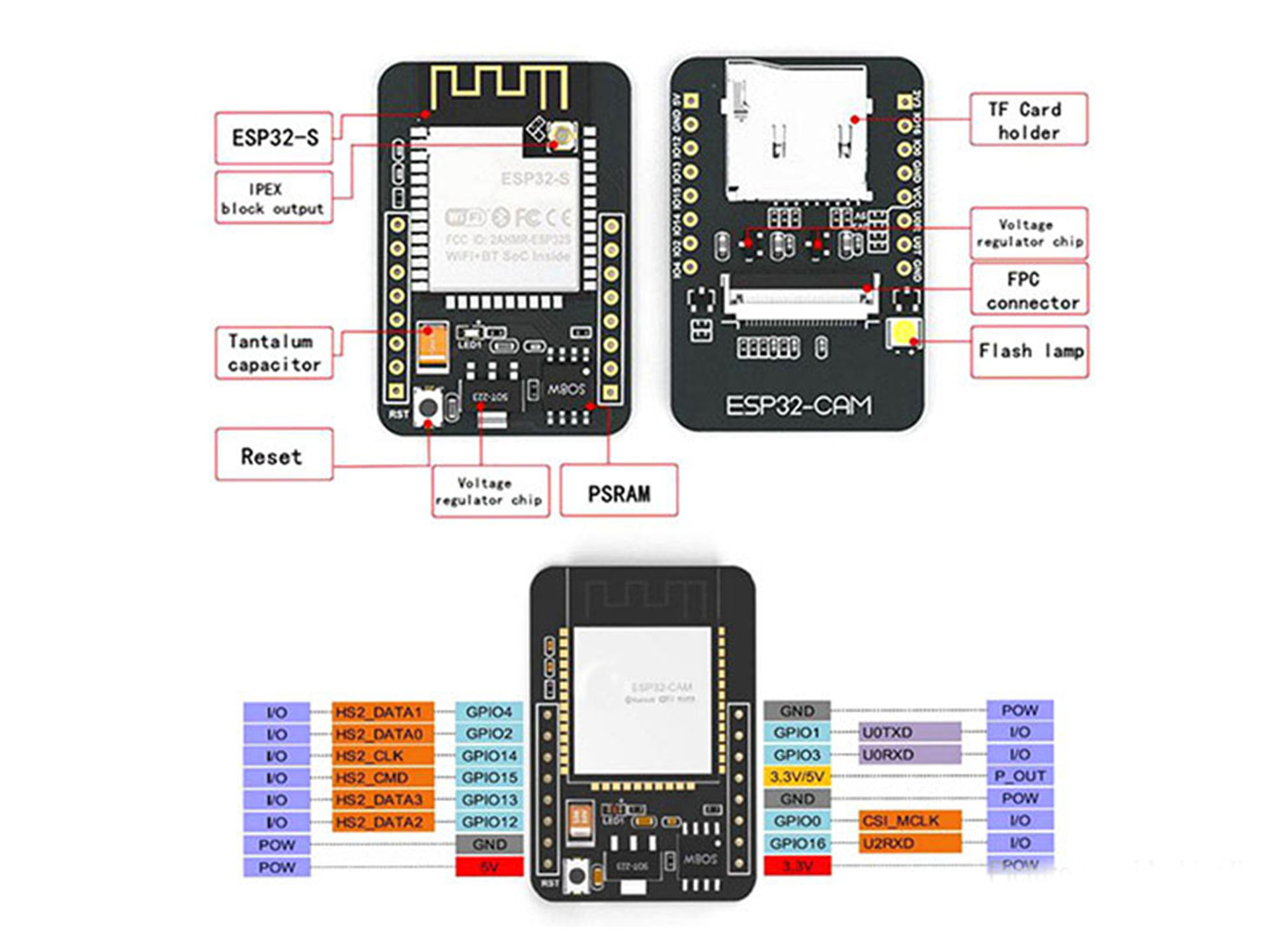

ESP32-CAM Pinout

ESP32-S~

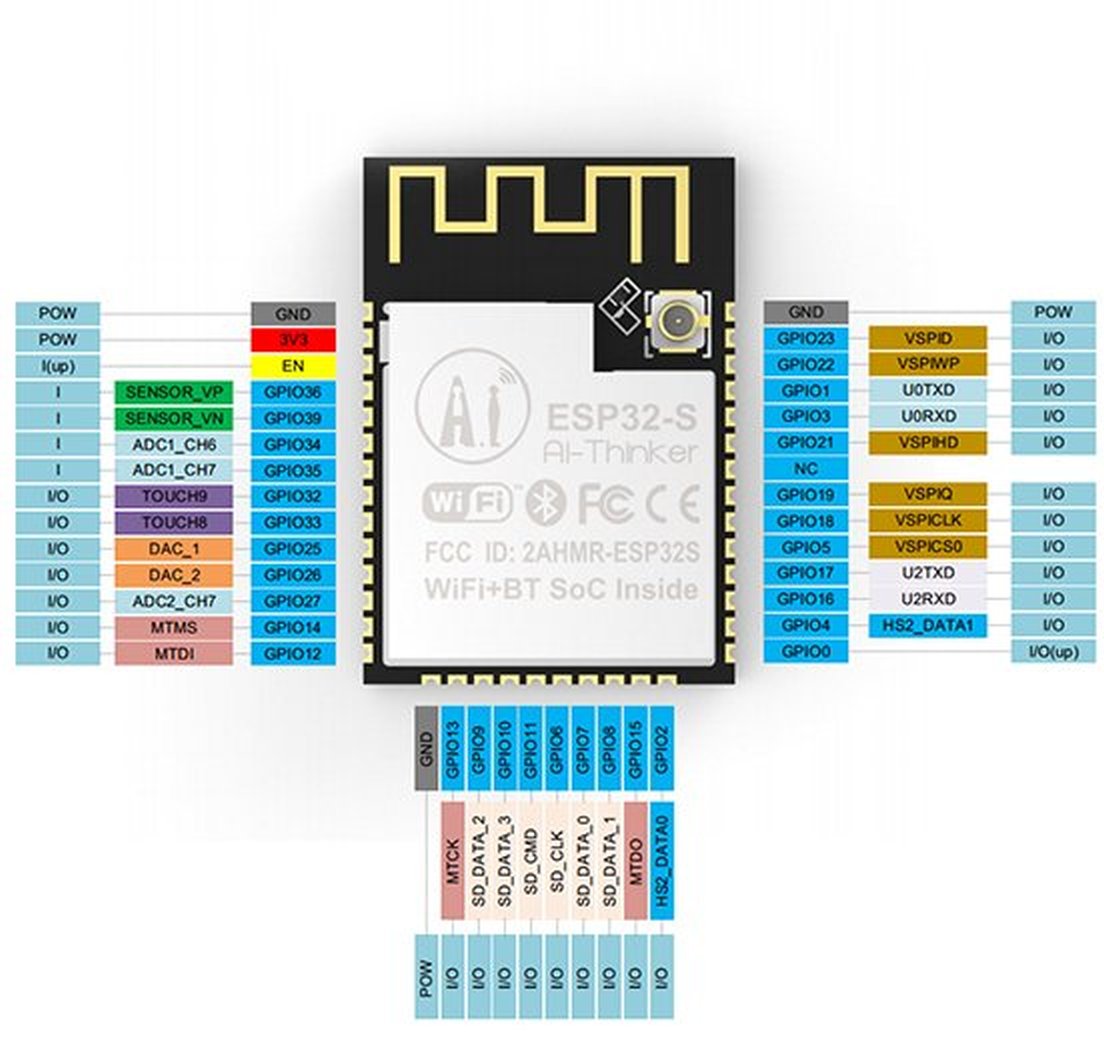

ESP32-S Pinout

ESP32-SOLO-1~

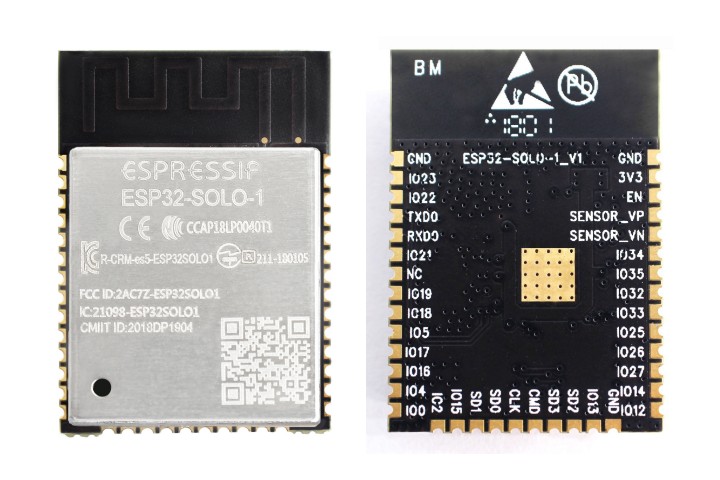

ESP32-SOLO-1 Pinout

ESP32-WROVER~

Includes ESP32-WROVER-B and ESP32-WROVER-BI

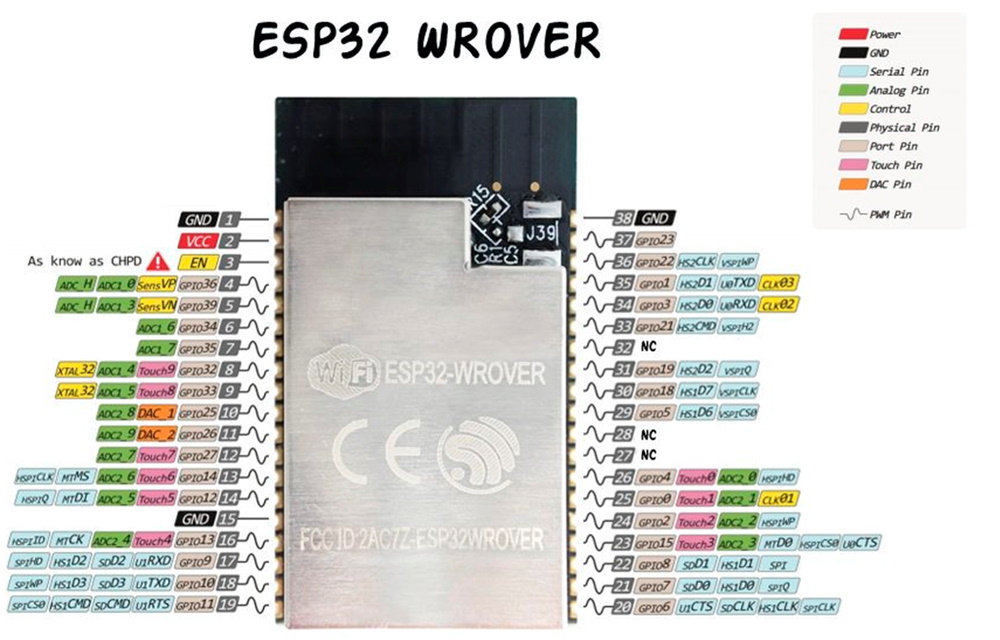

ESP32-WROVER Pinout

ESP32-WROOM-32x~

ESP32-ESP-WROOM-32 Pinout

Devices~

Sonoff Mini~

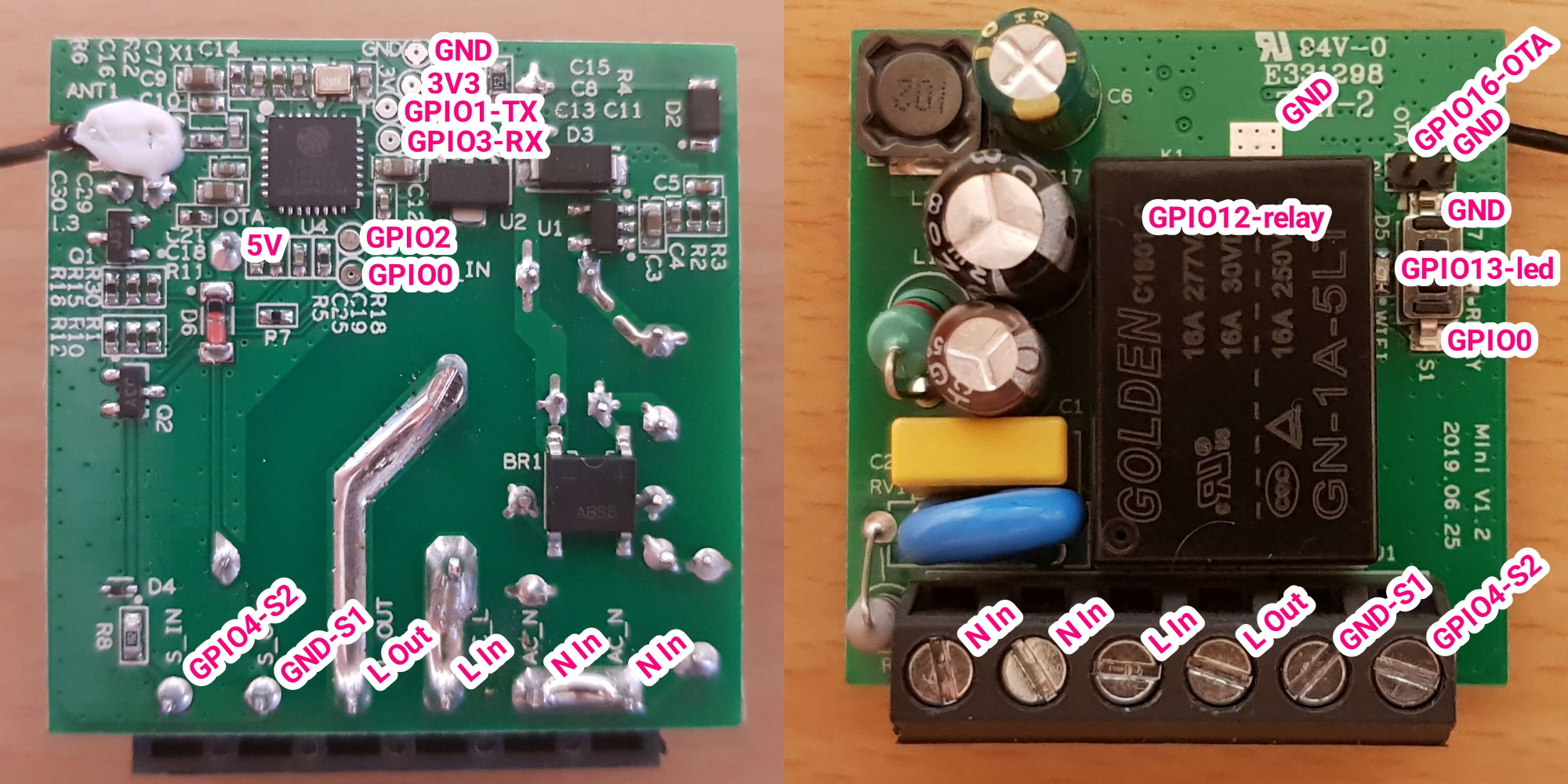

Sonoff Mini

Sonoff TH~

TH GPIOs

Sonoff Basic~

Basic GPIOs

Digoo DG-SP202 / OxaOxe NX-SP202~

Digoo DG-SP202 / Oxaoxe NX-SP202 Pinout (Found out by tracing the PCB copper tracks of the unknown ESP module. Not verified, except GPIO0, RX, TX, Vcc and GND which have successfully been used for flashing.)
